LFP3200-6

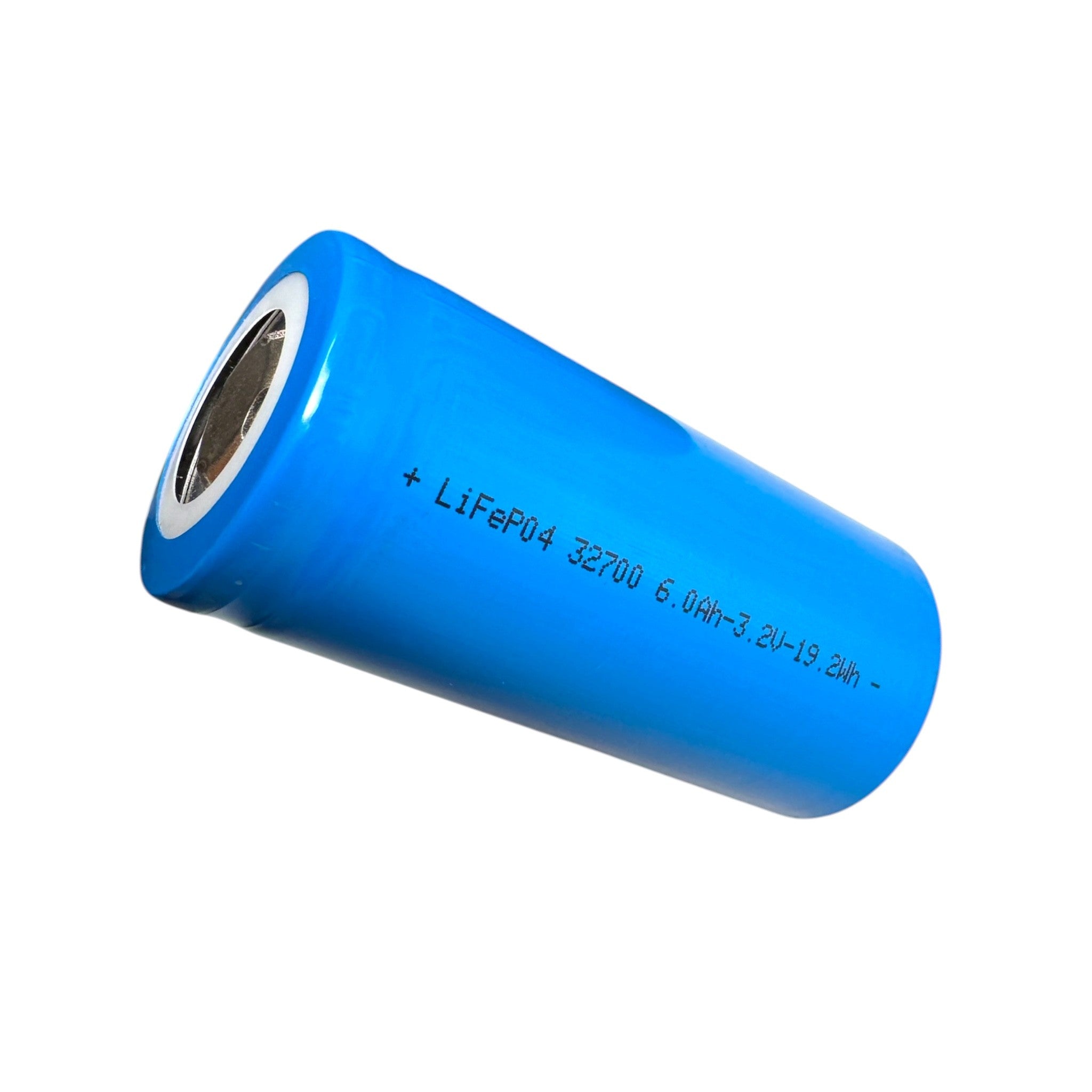

32700 LiFePO4 6000mAh Flat top

Notify me when this product is available:

These Lithium iron phosphate cell (LiFePO4), also called LFP (lithium ferro-phosphate) has a cathode of iron phosphate, an anode of graphite, and has a 3.2V nominal working voltage. The cycle life is more than 4 to 5 times that of other lithium ion cells. The operating temperature range is wider and safer, better power density, low discharge rate, flat discharge curve, low heat and chemically more stable compared to other lithium chemistries.

These cells are most suitable for high power applications such as EV car, solar storage units, wind storage units, DIY power packs, power tool and RC hobby.

Technical specifications

  • Rated capacity: 6000 mAh (0.2C / +25 ° C)
  • Cell model: 32700 flat top
  • Cell chemistry: LiFePO4 (Lithium iron phosphate)
  • Nominal voltage: 3.2V
  • Energy: 19 Wh
  • Cut-off voltage: 2V
  • Maximum charging voltage: 3.65V
  • Standard charging current: 3A / 0.5C
  • Maximum continuous discharge current: 18A / 3C
  • Maximum discharge current (3 minutes): 30A / 5C
  • Self-discharge rate: ≤ 3% / month
  • Internal resistance: 20 mΩ
  • Number of cycles / service life: > 1500
  • Operating temperature / charging: 0 ° C ~ 45 ° C
  • Working temperature / discharge: -20 ° C ~ 50 ° C
  • Weight: 142 g
  • Storage temperature: -30 ° C ~ 45 ° C
  • Dimensions approx. (D × L): Ø32 × 70 mm



ATTENTION: Please only use LiFePO4 chargers or bench power supply with CC/CV at 3.65V maximum charge voltage. Failure to do so will damage these batteries.
