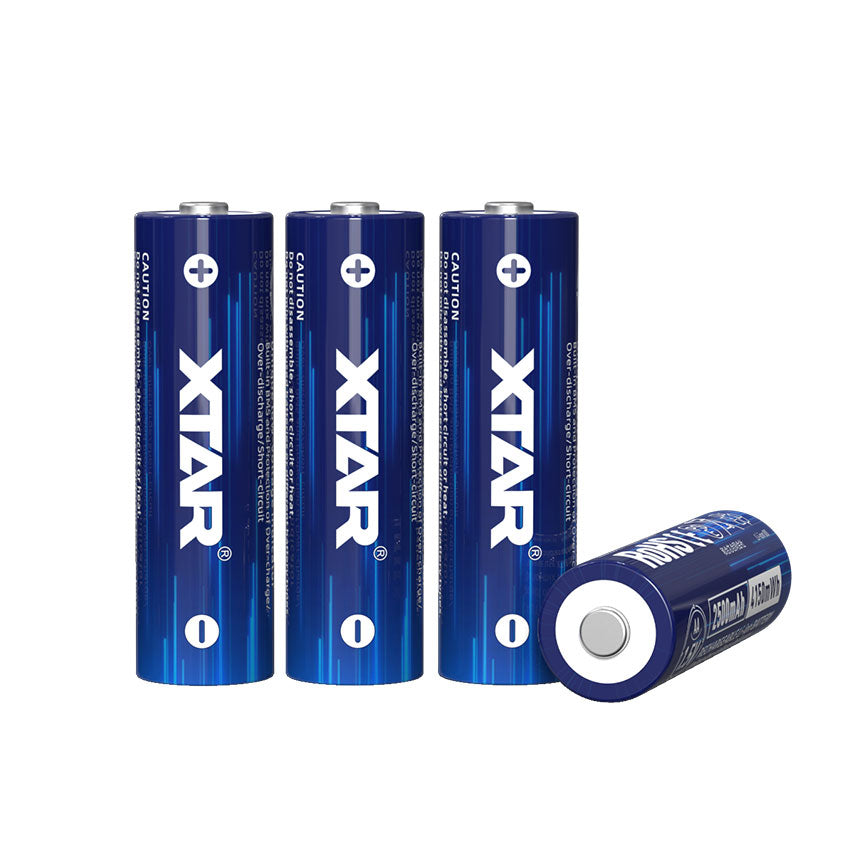

XTAR AA 1.5V 4150mWh 2500mAh Li-ion rechargeable battery - Pack of 4

A high-capacity rechargeable AA cell featuring a built-in voltage regulator to maintain a constant 1.5 V output throughout most of its discharge cycle, ensuring stable performance in devices sensitive to voltage drops. It delivers approximately 2500 mAh capacity (or 4150 mWh of energy) and charges fully in about 2.9 hours via compatible XTAR chargers, with a smart LED indicator to show charging status.

The cell includes an intelligent safety chip offering over-charge, over-discharge, short-circuit, and leak protection, and a low-voltage indicator that gently steps down to around 1.1 V, allowing devices to signal low battery before shutdown.

Specifications

·        Chemistry: Li-ion with integrated protection circuit

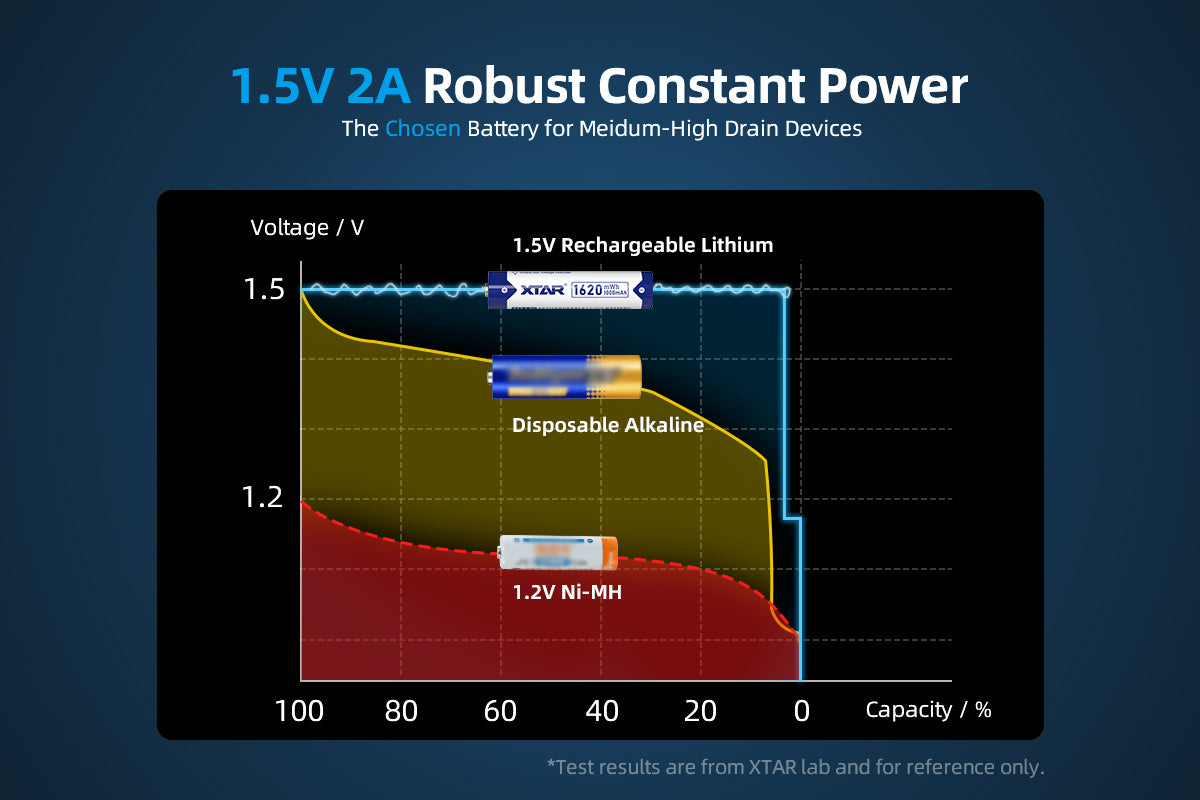

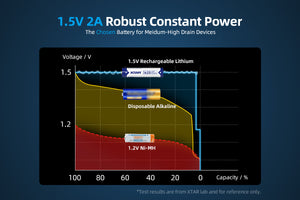

·        Nominal Voltage: Provides a regulated 1.5 V output until near depletion, unlike NiMH cells where voltage drops continuously.

·        Operation: When battery is near depleted, the voltage will step down to 1.1V letting devices indicate low power in advance before cutoff.

·        Capacity: 2500 mAh / 4150 mWh

·        Cycle Life: ≈ 1200 cycles

·        Maximum Continuous Discharge: 2 A

·        Peak Discharge: Short bursts up to ~3 A

·        Charging Voltage / Current: 5 V / 0.45 ± 0.05 A

·        LED Indicator: Yes (charging status)

·        Operating Temperature: –20 °C to 60 °C

·        Charging Temperature: 0 °C to 45 °C

·        Storage Temperature: –20 °C to 50 °C (recommended: 25 ± 5 °C)

·        Dimension: AA (Ø14.3 ± 0.3 mm × 50.3 ± 0.5 mm)

·        Weight: ≈ 20 g

·        Positive Terminal: Button top

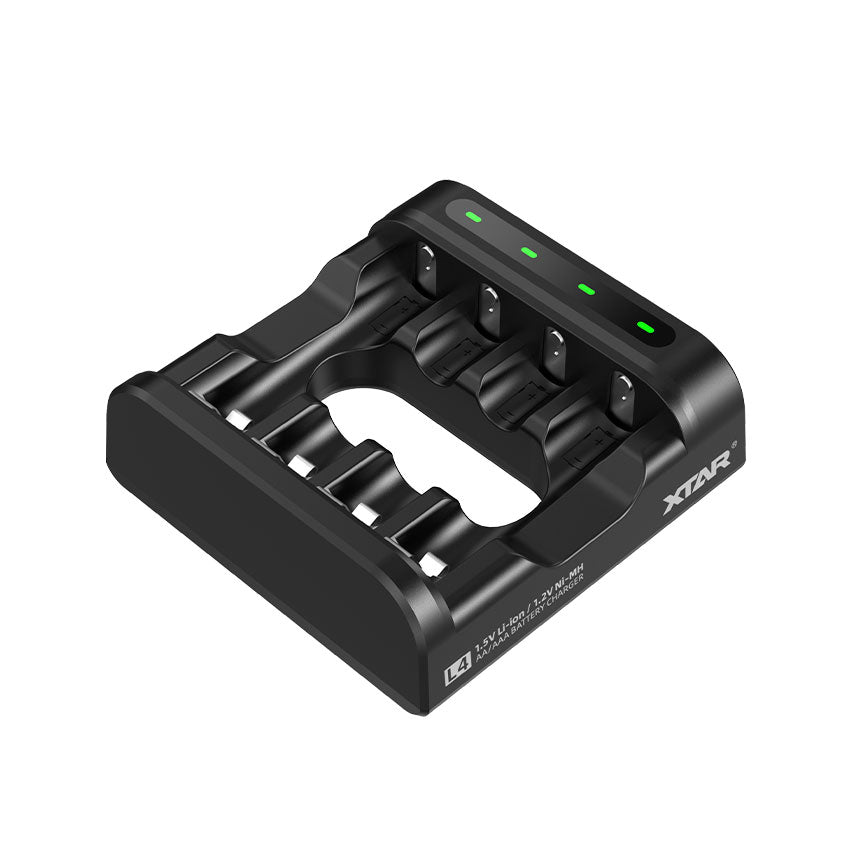

Note: These batteries must be charged with chargers specifically designed for 1.5V lithium-ion cells (e.g., XTAR VX4, XTAR L4). Do not use standard NiMH or 3.7V Li-ion chargers, as this may damage the cells. For compatible chargers, click HERE.
